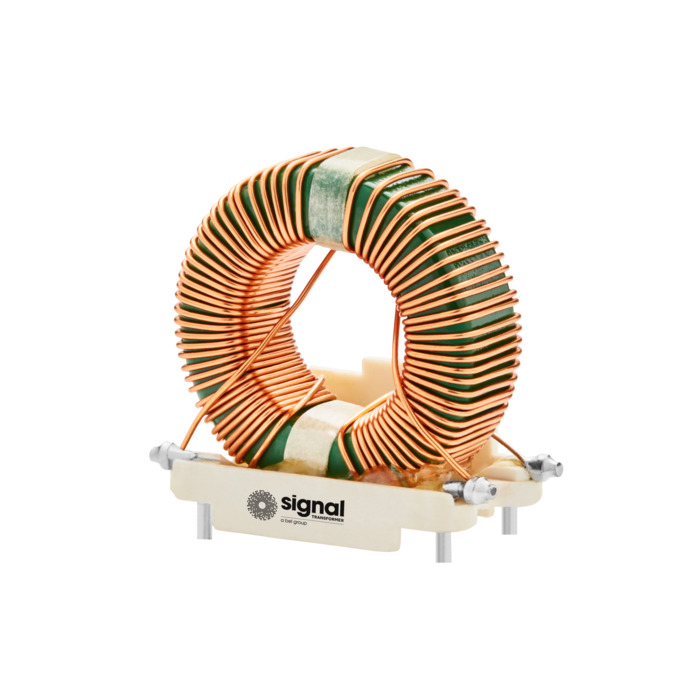

HCTC-7-2.8 Common Mode Chokes

High Current Toroidal Choke, 7 mH, 2.8 A, 120 mΩ DCR, 1500 Vrms, -55°C ~ +105°C, Through Hole Mount

Stock Check

Request Quote
Explore Custom Magnetic Solutions Discover how we tailor transformers, chokes, coils, and inductors to meet your application needs—electrically, mechanically, and with full engineering support.
Request Customization

Features & Specifications

Inductance (mH) 7
Current (A) 2.8
DCR (Ohm) 0.12
Dielectric Strength (Vrms) 1500
Operating Temperature (ºC) -55 ~ +105
Length (mm) 30.48
Width (mm) 15.39
Height (mm) 30.48
Mounting Type Through Hole Mount
Packaging Tray
Inductance Leakage (mH) 0.032
Lead Thickness (mm) 1.27
Lead Length (mm) 3.81
AEC-Q200 Compliant No
RoHS Compliant Yes
Brand Signal Transformer
