Filter And Dual Chokes

Share

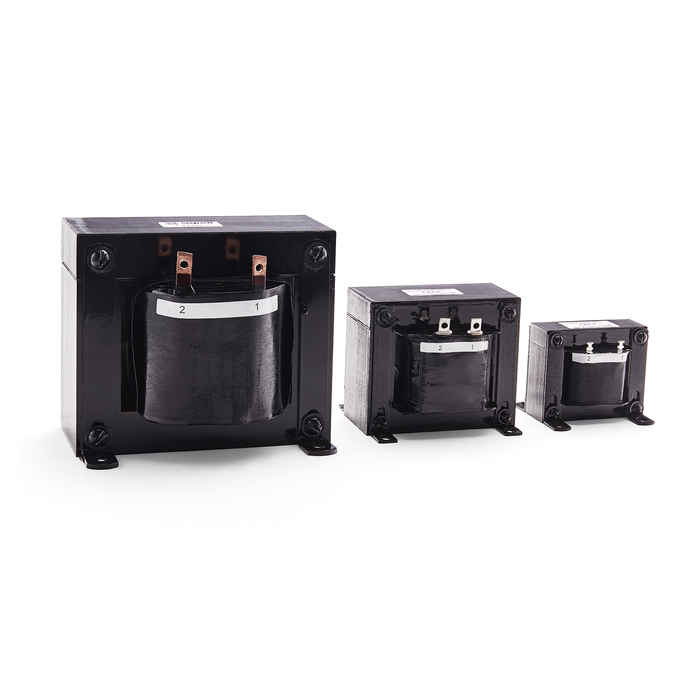

Signal's CH and CL chokes are designed to complement the rectifier power transformers so that a set may be specified for DC power supplies using inductive filters. Both the CH and CL series can be chassis mounted.

Specifications

  • Inductance - 0.12 MHY to 100 MHY
  • DC Current - 1.0 ADC to 200 ADC
  • Insulation System - Class B Insulation 130 ºC

Features

  • Chassis Mount
  • Over 12 Standard Configurations

Email Form

Signal's CH and CL chokes are designed to complement the rectifier power transformers so that a set may be specified for DC power supplies using inductive filters. Both the CH and CL series can be chassis mounted.

Specifications

  • Inductance - 0.12 MHY to 100 MHY
  • DC Current - 1.0 ADC to 200 ADC
  • Insulation System - Class B Insulation 130 ºC

Features

  • Chassis Mount
  • Over 12 Standard Configurations
