0RQB-X3S11 Series
0RQB-X3S11 Series

0RQB-X3S11 Series

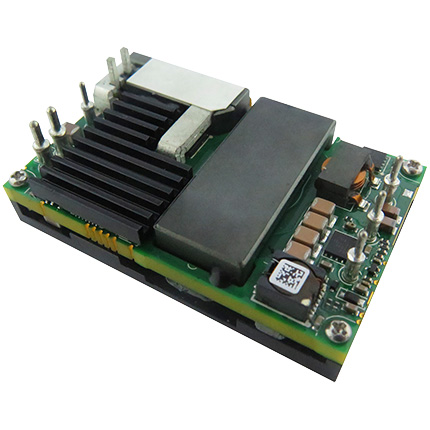

The 0RQB-X3S11BG is a DC-DC converters that can deliver up to 124A at 10.4V. Total power is 1300W. This module operate over a narrow input range Vin = 45 Vdc-58.5 Vdc and provide a precisely regulated output voltage 10.4V. Features include remote On/Off, power good, over current and over temperature protection. This converter is intended to provide isolation and step down to generate a regulated intermediate bus for the purpose of powering nonisolated Point-of-Load (POL) converters. Parallel operation.
Features
  • Power Good signal
  • Over temperature protection
  • Over current protection
  • Output Over-voltage Protection
  • Input Under Voltage Lockout
  • Parallel Indication
  • Remote On/Off
Specifications
  • Power (W): 1300
  • Input Voltage Range (VDC): 45 ~ 58.5
  • Output Voltage (VDC): 10.4
  • Operating Temperature Range (ºC): -5 ~ +85
  • Standard Footprint: 1/4 Brick
  • Isolation (VDC): 500
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CSA, Nemko
  • RoHS Compliant: Yes
