0RQB-C5W24 Series

Share

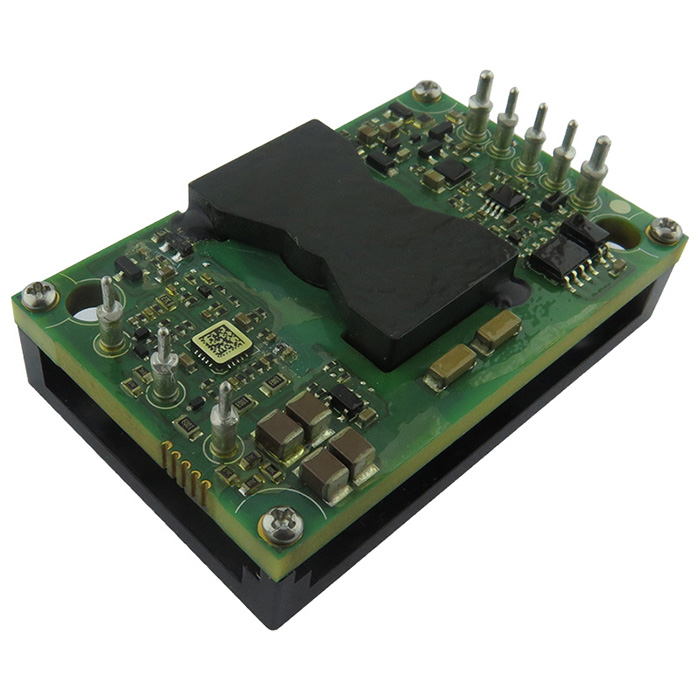

The 0RQB-C5W24x is an isolated DC/DC converter that provide up to 150 W of output power from a wide input range (66Vin and 110 V typical). The unit is designed to be highly efficient. Standard feature includes remote on/off, input under-voltage lockout, over current and short circuit protection and overvoltage protection. Conformal coated PCB is used for environmental ruggedness. Conformal coated PCB is used for environmental ruggedness.

Specifications

  • Input Voltage: 50 - 160 VDC
  • Output Voltage: 24.0 VDC
  • Power: 150.0 W
  • Size: 2.3 x 1.45 x 0.5 Inches
  • Ambient Temperature: -40 to 100 ºC
  • Isolated

Features

  • I/O Isolation Voltage: 3000 V
  • Single
  • Type input Voltage: 50/110/160 V

Email Form

The 0RQB-C5W24x is an isolated DC/DC converter that provide up to 150 W of output power from a wide input range (66Vin and 110 V typical). The unit is designed to be highly efficient. Standard feature includes remote on/off, input under-voltage lockout, over current and short circuit protection and overvoltage protection. Conformal coated PCB is used for environmental ruggedness. Conformal coated PCB is used for environmental ruggedness.

Specifications

  • Input Voltage: 50 - 160 VDC
  • Output Voltage: 24.0 VDC
  • Power: 150.0 W
  • Size: 2.3 x 1.45 x 0.5 Inches
  • Ambient Temperature: -40 to 100 ºC
  • Isolated

Features

  • I/O Isolation Voltage: 3000 V
  • Single
  • Type input Voltage: 50/110/160 V

Email Form

0RQB-C5W24 Series

Part Number Distributor Stock Drawing/Datasheet 3D Model Sample Request Footprint/Symbol Power (W)Output Voltage (VDC)Output Current (A)Voltage Input (VDC)Operating Temperature (°C)Dimensions LxWxH (in)Active Logic
0RQB-C5W24R cancel
3D Icon symbols 150246.2550-160-40 to 1002.3 x 1.45 x 0.5Active High, with Baseplate
0RQB-C5W24S cancel
symbols 150246.2550-160-40 to 1002.386 x 2.2 x 0.5Active Low, with Baseplate
