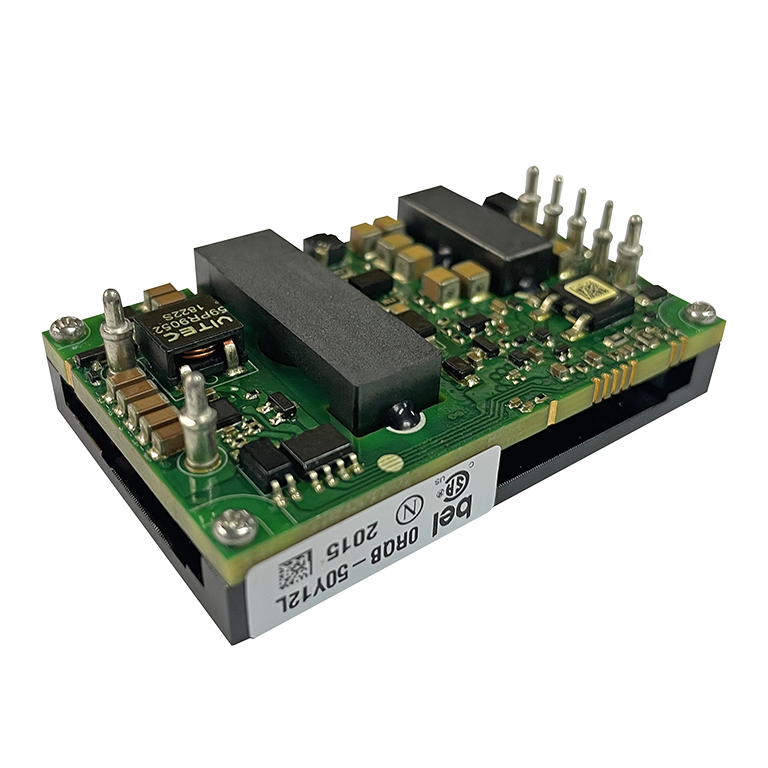

The 0RQB-50Y12L is an isolated DC/DC converter providing 50 W of output power from a wide input range (24 V,48 V,72 V,96 V,110 V typical). Standard features include remote on/off, input under-voltage protection, output over-voltage protection, over current and short circuit protection. This converter can also provide a 5 V/5 mA auxiliary supply. When a large hold-up capacitor is added, the converter can still work up to 12 mS when the input supply is interrupted. Conformal coated PCB is used for environmental ruggedness.

Specifications

  • Input Voltage: 14.5 - 154.0 VDC
  • Output Voltage: 12.0 VDC
  • Power: 50.0 W
  • Size: 2.3 x 1.45 x 0.59 Inches
  • Ambient Temperature: -40 to 105 ºC
  • Isolated

Features

  • I/O Isolation Voltage: 3000 V
  • Single
  • Type input Voltage: 24/48/72/96/110 V
