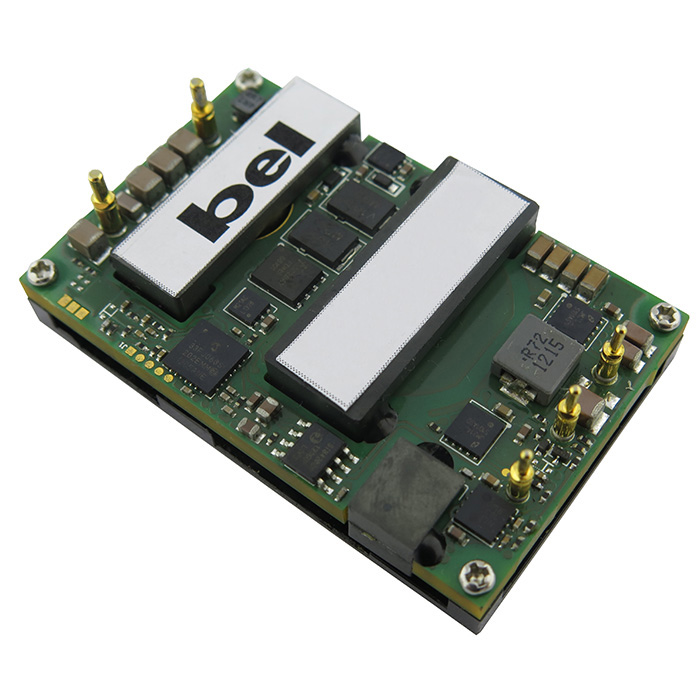

0RQB-Q2T06 Series

Share

The 0RQB-Q2T06x is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide up to 390 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection and under voltage lockout. The converter is provided in an industry standard quarter brick package.

Specifications

  • Input Voltage: 36 - 75 VDC
  • Output Voltage: 6.5 VDC
  • Power: 390.0 W
  • Size: 2.28 x 1.45 x 0.54 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Isolated

Features

  • Output Voltage Trim
  • Remote Sense
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 48 V

Datasheets and Drawings

Email Form

The 0RQB-Q2T06x is an isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide up to 390 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection and under voltage lockout. The converter is provided in an industry standard quarter brick package.

Specifications

  • Input Voltage: 36 - 75 VDC
  • Output Voltage: 6.5 VDC
  • Power: 390.0 W
  • Size: 2.28 x 1.45 x 0.54 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Isolated

Features

  • Output Voltage Trim
  • Remote Sense
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 48 V
