PFF3000 (DC-DC)
PFF3000 (DC-DC)

DATASHEET


PFF3000 (DC-DC)

Share

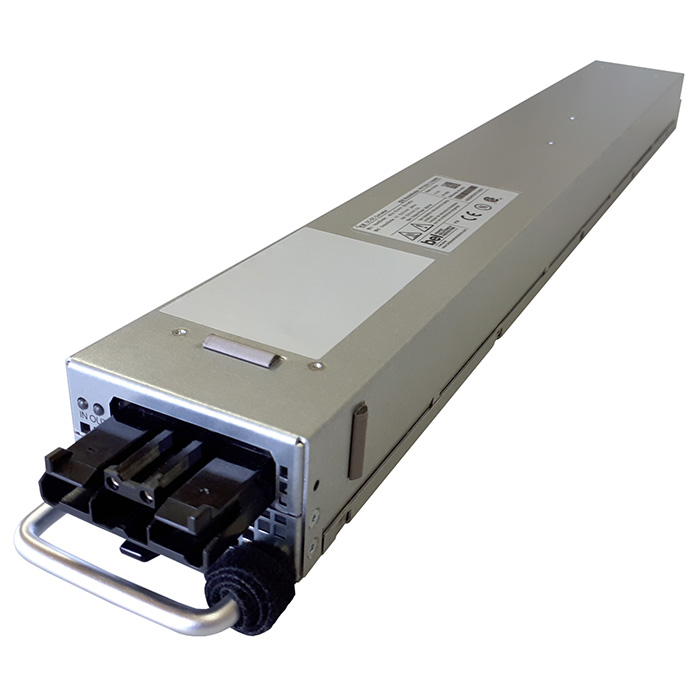

Bel Power Solutions PFF3000-12-069RD is a 3 kW DC/DC front-end converter that provides a main output 12.5 VDC from 40 - 72 VDC bus voltages to power Intermediate Bus Architectures (IBA) in high - performance and high - reliability servers, routers, and network switches. Features include very high efficiency, high reliability, low output voltage noise, and excellent dynamic response to load / input changes.

Specifications

  • Best-in-class, platinum equivalent efficiency
  • Input voltage range: 40 - 72 VDC
  • Up to 3 kW power - 244 A output current
  • Hot-plug capable
  • High density design: 30.5 W/in3
  • Form factor: 69 x 42 x 555 mm
  • RoHS Compliant

Features

  • Reverse polarity, over temperature, output overvoltage, and overcurrent protections
  • Parallel operation with active analog current sharing
  • Full digital controls for improved performance
  • 2 Status LEDs: DC input OK and warning / fault signaling
  • I2C communication interface for control, programming, and monitoring with Power Management Bus protocol

Datasheets and Drawings

Data Sheet PFF3000 (DC-DC) Datasheet

Email Form

SPECIFICATIONS

Bel Power Solutions PFF3000-12-069RD is a 3 kW DC/DC front-end converter that provides a main output 12.5 VDC from 40 - 72 VDC bus voltages to power Intermediate Bus Architectures (IBA) in high - performance and high - reliability servers, routers, and network switches. Features include very high efficiency, high reliability, low output voltage noise, and excellent dynamic response to load / input changes.

Specifications

  • Best-in-class, platinum equivalent efficiency
  • Input voltage range: 40 - 72 VDC
  • Up to 3 kW power - 244 A output current
  • Hot-plug capable
  • High density design: 30.5 W/in3
  • Form factor: 69 x 42 x 555 mm
  • RoHS Compliant

Features

  • Reverse polarity, over temperature, output overvoltage, and overcurrent protections
  • Parallel operation with active analog current sharing
  • Full digital controls for improved performance
  • 2 Status LEDs: DC input OK and warning / fault signaling
  • I2C communication interface for control, programming, and monitoring with Power Management Bus protocol
