Mounting Supports for Melcher™ Cassettes

Share

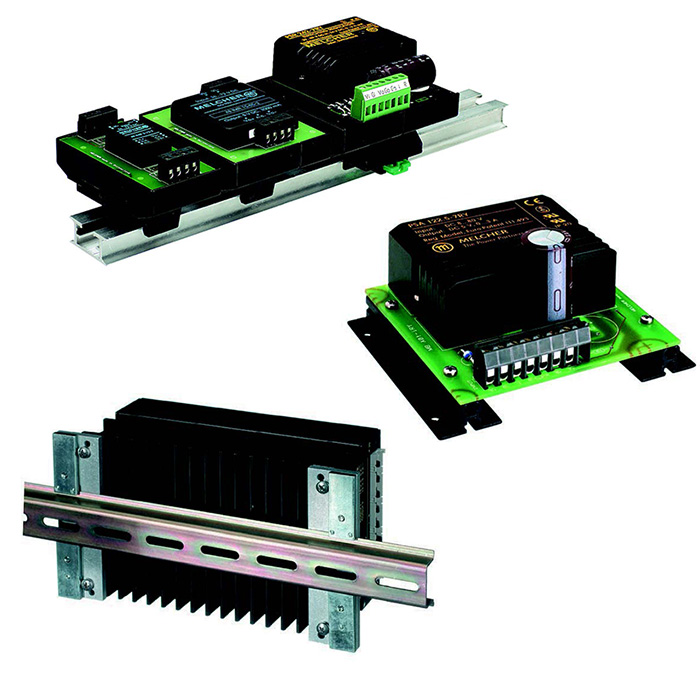

Special mounting supports have been designed for the integration of power supplies into switch boards, control panels, printed circuit boards, etc., using adapters for chassis-, DINrail, or PCB mounting. The 19-inch cassette style DC-DC and AC-DC converters can also be chassis-mounted with frontal access by means of a special Chassis Mounting Plate, attached to the converters. The Universal Mounting Bracket also fits to most of these cassette type converters, allowing for either vertical-chassis or DIN-rail mounting. A Bracket Kit, consisting of a PCB with screw-terminal connectors and a brackets suitable for either chassis or DIN-rail mounting, is available either for PCB mountable PSR and PSA Switching Regulators with option "Y" pins or for small DC-DC converters up to 15 Watt. For isolation of the PCB-mountable converters from a doublesided PCB, the use of Isolation Pads is recommended, as described below. RoHS-compliant products are available on request.

Email Form

Special mounting supports have been designed for the integration of power supplies into switch boards, control panels, printed circuit boards, etc., using adapters for chassis-, DINrail, or PCB mounting. The 19-inch cassette style DC-DC and AC-DC converters can also be chassis-mounted with frontal access by means of a special Chassis Mounting Plate, attached to the converters. The Universal Mounting Bracket also fits to most of these cassette type converters, allowing for either vertical-chassis or DIN-rail mounting. A Bracket Kit, consisting of a PCB with screw-terminal connectors and a brackets suitable for either chassis or DIN-rail mounting, is available either for PCB mountable PSR and PSA Switching Regulators with option "Y" pins or for small DC-DC converters up to 15 Watt. For isolation of the PCB-mountable converters from a doublesided PCB, the use of Isolation Pads is recommended, as described below. RoHS-compliant products are available on request.
