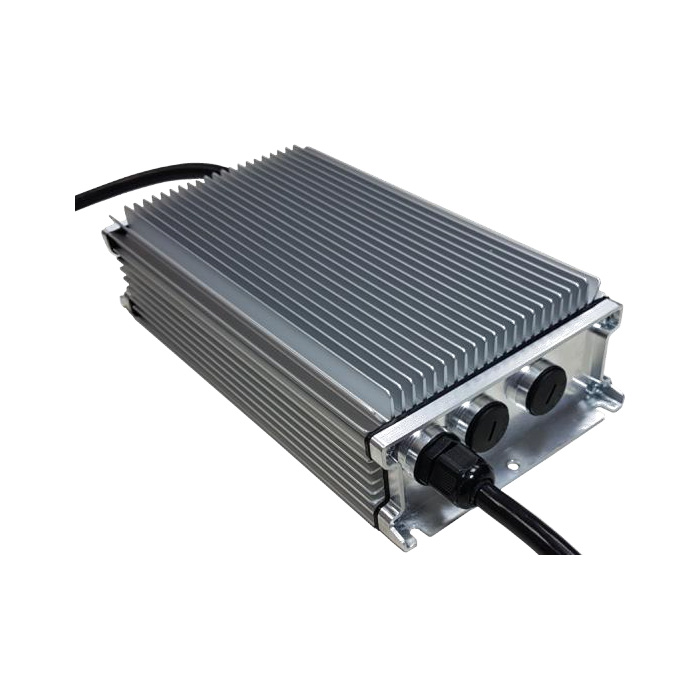

The MBS601 Series of AC-DC power supplies provides up to 600 W of regulated output power through a wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The MBS601 Series comes in a 4.92 x 9.86 x 2.36 inch form factor with a full set of protection features. The MBS601 Series is available in an aluminium extruded chassis having fins for an optimal heat dispersion via natural convection. The input / output connections are fixed to the chassis through water tight glands, which combined with the sealed enclosure, give the power supply an IP66/67/68 ingress protection grade. The MBS601 Series complies with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC, MoOP, 85 - 264 VAC, MoPP)
  • 600 W rated power (800 W peak)
  • High efficiency up to 94%
  • 24, 48 VDC voltages
  • Sealed enclosure, IP66/67/68 Ingress Protection grade
  • Stand by +5 V, 1.5 A output

Features

  • Suitable for harsh environments
  • Remote On / Off signal
  • Low earth / touch leakage current
  • IEC 60601-1-2 4th edition EMC compliant
  • Medical safety approval to IEC 60601-1 3rd edition, 2xMoPP protection grade BF appliances compatible

Datasheets and Drawings

Data Sheet MBS601 Datasheet

Technical Documents

inst-instrc MBS601 Installation Instruction

Email Form

SPECIFICATIONS

The MBS601 Series of AC-DC power supplies provides up to 600 W of regulated output power through a wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The MBS601 Series comes in a 4.92 x 9.86 x 2.36 inch form factor with a full set of protection features. The MBS601 Series is available in an aluminium extruded chassis having fins for an optimal heat dispersion via natural convection. The input / output connections are fixed to the chassis through water tight glands, which combined with the sealed enclosure, give the power supply an IP66/67/68 ingress protection grade. The MBS601 Series complies with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC, MoOP, 85 - 264 VAC, MoPP)
  • 600 W rated power (800 W peak)
  • High efficiency up to 94%
  • 24, 48 VDC voltages
  • Sealed enclosure, IP66/67/68 Ingress Protection grade
  • Stand by +5 V, 1.5 A output

Features

  • Suitable for harsh environments
  • Remote On / Off signal
  • Low earth / touch leakage current
  • IEC 60601-1-2 4th edition EMC compliant
  • Medical safety approval to IEC 60601-1 3rd edition, 2xMoPP protection grade BF appliances compatible
