MEPG300
MEPG300

DATASHEET


MEPG300

Share

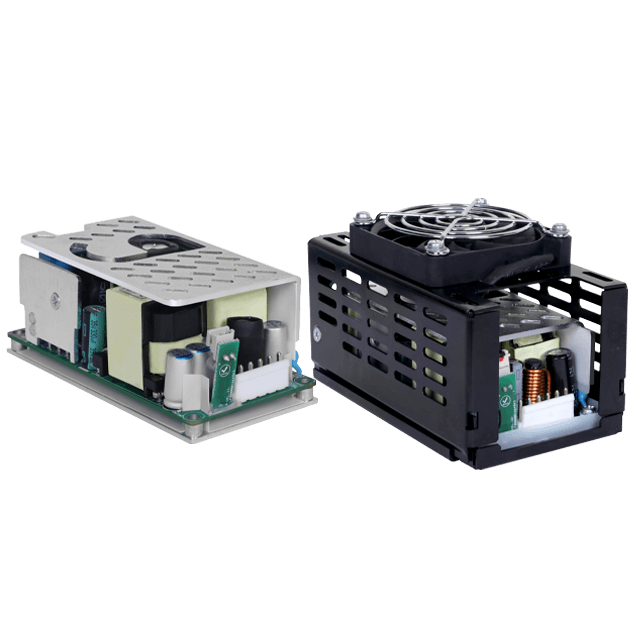

The EOS Power MEPG300 Series of AC-DC power supplies accommodate a universal input voltage of 90 – 264 VAC, delivering up to 300 W of output power with forced air cooling. The power supplies are available in six single output voltages ranging from 12 V to 58 V. The MEPG300 Series can be used in a broad array of space-constrained applications in which minimal power loss and easy thermal management are required. The Series is built to the most recent medical standards (EN/IEC 60601-1), with 2 x MOPP isolation options for Class I applications. RoHS compliant and CE marked, the power supplies are safety agency certified and meet the latest regulatory requirements.

Specifications

  • Efficiency up to 94 %
  • 4 x 2 x 1.6 in (101.6 x 50.8 x 40.64 mm) Form factor
  • Output power up to 300 W
  • High power density 23.43 W/inch3
  • Operating temperature - 40 to +70°C
  • IEC / EN / ANSI AAMI 60601-1 compliant
  • MTBF > 800 000 hours
  • Over temperature, OV, OC and SC protection

Features

  • New Efficient GaN power technology
  • Thermal shut-down feature
  • Available with metal enclosures / accessories

Datasheets and Drawings

Data Sheet MEPG300 Datasheet

Email Form

SPECIFICATIONS

The EOS Power MEPG300 Series of AC-DC power supplies accommodate a universal input voltage of 90 – 264 VAC, delivering up to 300 W of output power with forced air cooling. The power supplies are available in six single output voltages ranging from 12 V to 58 V. The MEPG300 Series can be used in a broad array of space-constrained applications in which minimal power loss and easy thermal management are required. The Series is built to the most recent medical standards (EN/IEC 60601-1), with 2 x MOPP isolation options for Class I applications. RoHS compliant and CE marked, the power supplies are safety agency certified and meet the latest regulatory requirements.

Specifications

  • Efficiency up to 94 %
  • 4 x 2 x 1.6 in (101.6 x 50.8 x 40.64 mm) Form factor
  • Output power up to 300 W
  • High power density 23.43 W/inch3
  • Operating temperature - 40 to +70°C
  • IEC / EN / ANSI AAMI 60601-1 compliant
  • MTBF > 800 000 hours
  • Over temperature, OV, OC and SC protection

Features

  • New Efficient GaN power technology
  • Thermal shut-down feature
  • Available with metal enclosures / accessories
