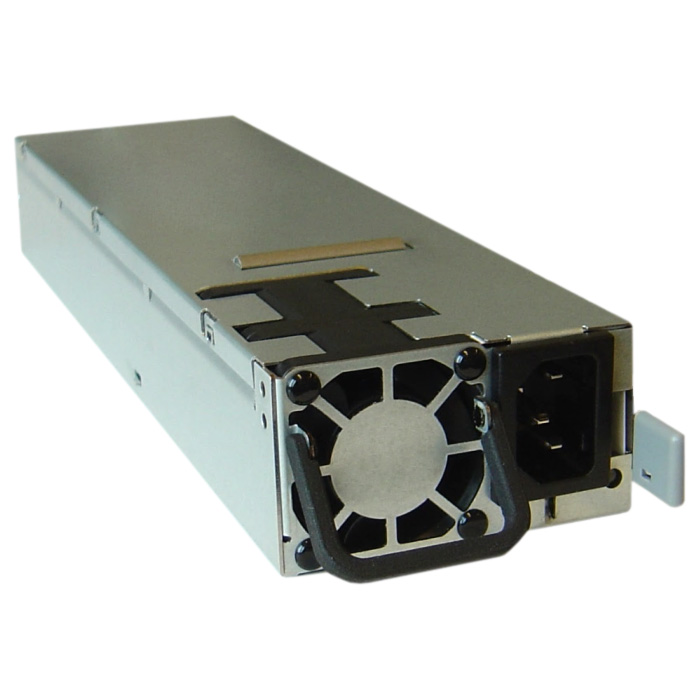

PET2000 (AC-DC) Series
Specifications
- Power (W): 2000
- Input Voltage Range (VAC): 90 ~ 264
- Output Voltage (VDC): 12
- Standby Output Voltage (VDC): 12
- Operating Temperature Range (ºC): 0 ~ +55
- Cooling Type: Fan
- Dimensions L x W x H (mm): 265 x 73.5 x 40
- Dimensions L x W x H (in): 10.43 x 2.89 x 1.57
- Safety Standards: 62368
- Safety Approvals: BSMI, CB, CE, CQC, CSA, EAC, Nemko
- RoHS Compliant: Yes
Features
- AC input with power factor correction
- Hot-plug capable
- Parallel operation with active current sharing
- Full digital controls for improved performance
- Power Management Bus communication interface for control, programming and monitoring
Compatible Products with PET2000 (AC-DC) Series
PET750 (AC-DC) Series
The PET750-12-050 is a 759 Watts, 1U form factor power supply module with Active PFC (Power Factor Correction) and Power Management Bus. It converts standard AC mains power into a main output of 12V for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches.
View Product
PET800 (AC-DC) Series
The PET800-12-074xA is an 800 Watts, 1 U form factor power supply module with Active PFC (Power Factor Correction) and Power Management Bus. It converts standard AC mains power into a main output of 12 V for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches.
View Product
PET1600 (AC-DC) Series
The PET1600-12-074NA is a 1600 Watt AC to DC, power-factorcorrected (PFC) power supply that converts standard AC power into a main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches.
View Product
PET2000 (AC-DC with 450 mm long cables) Series
PET2000-NAS446 is a 2000 Watt AC to DC, power-factor corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC. PET2000-NAS446 utilizes full digital control architecture for greater efficiency, control and functionality. The unit includes four 450 mm long cables with 20 pin connectors. The four connectors are intended to be attached directly to individual mining load boards. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
View Product
PET2000 (AC-DC/HVDC) Series
PET2000-12-074xH is a 2000 Watt, power-factor corrected (PFC) power supply that converts standard AC or DC power into a main output of +12 VDC. PET2000-12-074xH utilizes full digital control architecture for greater efficiency, control and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).
View Product
