C1F Series

Share

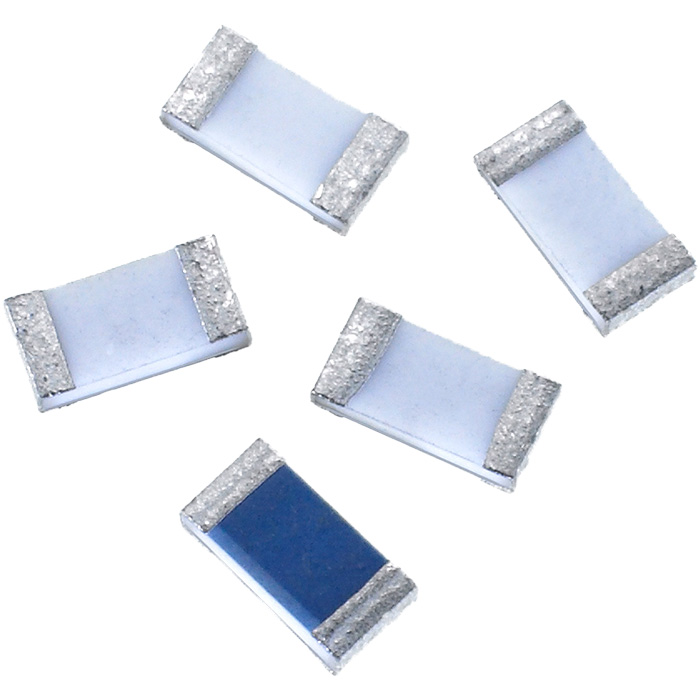

C1F Series is AEC-Q Compliant 1206 size surface mount fast acting chip fuse, with improved surge withstand performance. 125V AC/63V DC voltage rating, 250mA to 8A current rating, -55ºC to +125ºC operating temperature.

Specifications

  • AEC-Q Compliant
  • IR Reflow Process - 260ºC, 10 Sec., Max.
  • Multiple Safety Agency Approvals
  • Operating Temperature: -55ºC to +125ºC
  • Mil-Std 202G Environmental Compliant

Features

  • Ceramic substrate, printed element construction
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • T&R, Auto-Insertable
