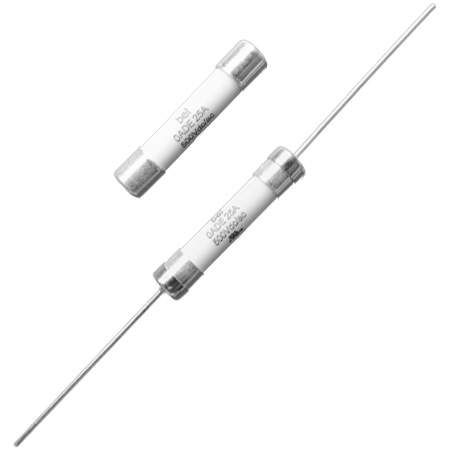

0ADEC/0ADEP Series

1/4 x 1 1/4 Inch Ceramic Tube Fuses. Very High AC and DC Voltage Ratings. Very High AC and DC Interrupting Ratings. Used for primary circuit protection of almost any power supply, charger or industrial product.

Specifications

  • Cartridge Fuses Field Replaceable (used in PCB Clips or Panel Fuseholder)
  • Operating Temperature: -55°C to 125°C
  • Axial Leaded pigtail fuses Wave Solder 260°C, 10 Seconds Max

Features

  • Ceramic Tube, Silver Plated End Caps
  • Tin Plated Leads Axial Leads
  • RoHS2 Compliant
  • Pb-Free
  • Halogen-Free

Email Form

1/4 x 1 1/4 Inch Ceramic Tube Fuses. Very High AC and DC Voltage Ratings. Very High AC and DC Interrupting Ratings. Used for primary circuit protection of almost any power supply, charger or industrial product.

Specifications

  • Cartridge Fuses Field Replaceable (used in PCB Clips or Panel Fuseholder)
  • Operating Temperature: -55°C to 125°C
  • Axial Leaded pigtail fuses Wave Solder 260°C, 10 Seconds Max

Features

  • Ceramic Tube, Silver Plated End Caps
  • Tin Plated Leads Axial Leads
  • RoHS2 Compliant
  • Pb-Free
  • Halogen-Free

Email Form

0ADEC/0ADEP Series

Part Number Distributor Stock Drawing Data Sheet Current Rating, Amp Voltage, AC Characteristic Voltage, DC Case Size Interrupting Rating, AC Interrupting Rating, DC
0ADEC9250-XX check_circle     25 500 Fast Acting 500 6x32 30000 20000
0ADEP9160-XX check_circle     16 500 Fast Acting 500 6x32 30000 20000
0ADEC9200-XX check_circle     20 500 Fast Acting 500 6x32 30000 20000
0ADEC9120-XX check_circle     12 500 Fast Acting 500 6x32 30000 20000
0ADEC9300-XX check_circle     30 500 Fast Acting 500 6x32 30000 20000
0ADEP9150-XX check_circle     15 500 Fast Acting 500 6x32 30000 20000
0ADEC9100-XX check_circle     10 500 Fast Acting 500 6x32 30000 20000
0ADEP9250-XX check_circle     25 500 Fast Acting 500 6x32 30000 20000
0ADEP9100-XX check_circle     10 500 Fast Acting 500 6x32 30000 20000
0ADEC9150-XX check_circle     15 500 Fast Acting 500 6x32 30000 20000
0ADEP9300-XX check_circle     30 500 Fast Acting 500 6x32 30000 20000
0ADEC9160-XX check_circle     16 500 Fast Acting 500 6x32 30000 20000
0ADEP9120-XX check_circle     12 500 Fast Acting 500 6x32 30000 20000
0ADEP9200-XX check_circle     20 500 Fast Acting 500 6x32 30000 20000
