0ALF Series
0ALF Series

DATASHEET


0ALF Series

Share

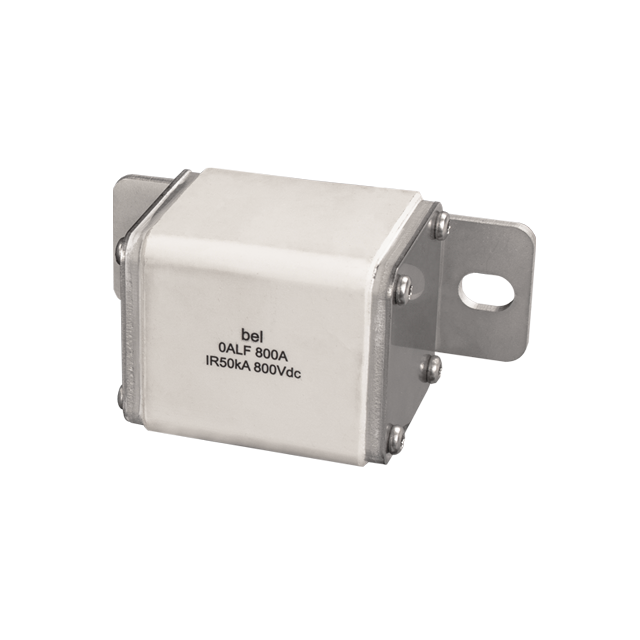

0ALF Series is an electric vehicle fuse used in Electric Vehicle and Hybrid Electric Vehicle applications for short circuit protection. Maximum voltage 800V DC, current rating from 700A through 800A, operating temperature -40ºC to 100ºC.

Specifications

  • 800 VDC
  • 50kA Interrupting Rating DC
  • 700A to 800A
  • Stud mount with offset blade

Features

  • EV and Hybrid EV Applications
  • aR Type

Datasheets and Drawings

Data Sheet 0ALF Series Datasheet

Environmental Compliance

Environmental Compliance Bel Fuse RoHS Declaration

Technical Documents

oPDF 0ALF Test Report

Email Form

SPECIFICATIONS

0ALF Series is an electric vehicle fuse used in Electric Vehicle and Hybrid Electric Vehicle applications for short circuit protection. Maximum voltage 800V DC, current rating from 700A through 800A, operating temperature -40ºC to 100ºC.

Specifications

  • 800 VDC
  • 50kA Interrupting Rating DC
  • 700A to 800A
  • Stud mount with offset blade

Features

  • EV and Hybrid EV Applications
  • aR Type
