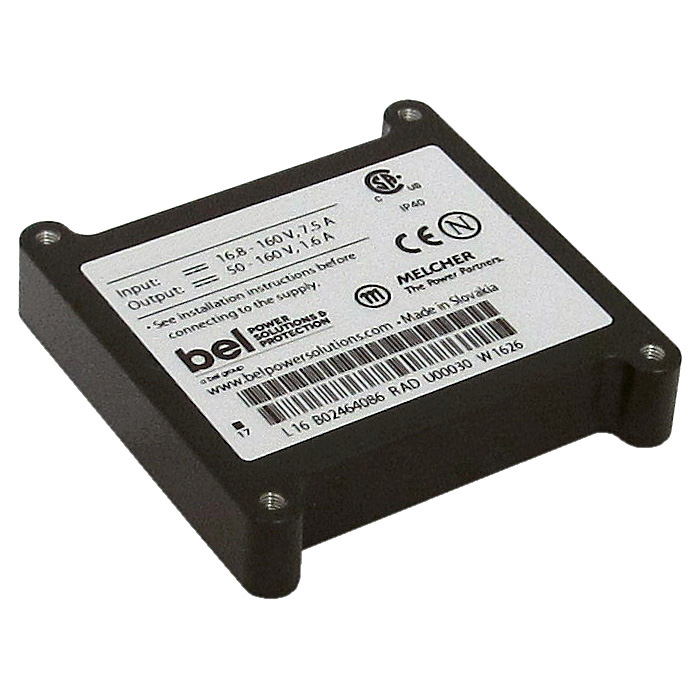

The boost converters were designed in accordance with the standards EN 50155 and EN 50121-3-2 to meet the requirements of various railway and industrial applications in rugged environment. They are particularly suitable to expand the input voltage range of power supplies (e.g. 110IMY15 or 110IMY70 Series DC-DC converters). An additional circuit allows for providing a predefined interruption time. When the input voltage exceeds a predefined output voltage level, the input voltage is directly fed forward. The converters exhibit an input EMC-filter. The boost converters are available in a fully enclosed case or open-frame (option Z).

Specifications

  • RoHS-compliant for all 6 substances
  • Wide input voltage range 12 to 154 VDC
  • Output: 50 to 80 VDC
  • Class III equipment (no isolation input /output)
  • Extremely high efficiency

Features

  • Excellent surge and transient protection
  • Externally adjustable output voltage
  • Programmable undervoltage lockout and inhibit
  • Interruption time with external capacitor
  • EN 50155, 50121-3-2 observed

Datasheets and Drawings

Data Sheet IBX15 Data Sheet

Safety Certificates

Safety Certificate IBX15 Series A2 Certificate

Email Form

SPECIFICATIONS

The boost converters were designed in accordance with the standards EN 50155 and EN 50121-3-2 to meet the requirements of various railway and industrial applications in rugged environment. They are particularly suitable to expand the input voltage range of power supplies (e.g. 110IMY15 or 110IMY70 Series DC-DC converters). An additional circuit allows for providing a predefined interruption time. When the input voltage exceeds a predefined output voltage level, the input voltage is directly fed forward. The converters exhibit an input EMC-filter. The boost converters are available in a fully enclosed case or open-frame (option Z).

Specifications

  • RoHS-compliant for all 6 substances
  • Wide input voltage range 12 to 154 VDC
  • Output: 50 to 80 VDC
  • Class III equipment (no isolation input /output)
  • Extremely high efficiency

Features

  • Excellent surge and transient protection
  • Externally adjustable output voltage
  • Programmable undervoltage lockout and inhibit
  • Interruption time with external capacitor
  • EN 50155, 50121-3-2 observed
