TEC2600 (AC-DC/HVDC Intel Standard CRPS)
TEC2600 (AC-DC/HVDC Intel Standard CRPS)

DATASHEET


TEC2600 (AC-DC/HVDC Intel Standard CRPS)

Share

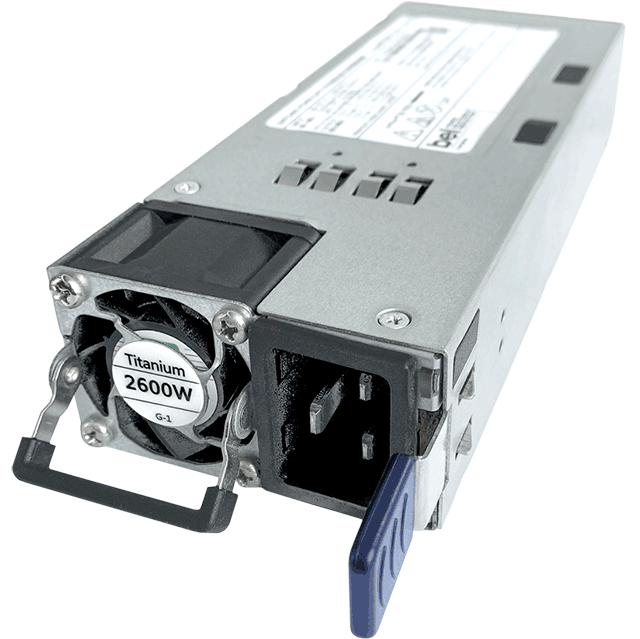

TEC2600-12-074xA is a 2600W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC2600-12-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Output Power up to 2600W
  • Output Voltage 12 VDC
  • +12 VSB (2.1A) Standby Output
  • Input Voltage Range 90 - 264 VAC / 180 - 300 VDC
  • Dimensions: 185 x 73.5 x 40 mm (7.28 x 2.89 x 1.57 in)
  • Meets 62368-1

Features

  • 80 Plus Titanium Efficiency
  • Intel Standard CRPS Form Factor
  • High Power Density
  • Black Box Recorder, Bootloader
  • Supports N+1 Redundancy, Cold Redundancy, Internal Oring
  • Clockwise and Counter-Clockwise Fan Rotation
  • Supports Power Management Bus Communication Protocol

Datasheets and Drawings

Data Sheet TEC2600 (AC-DC/HVDC) Datasheet

Email Form

SPECIFICATIONS

TEC2600-12-074xA is a 2600W Common Redundant Power Supply (CRPS) power supply that converts standard AC mains power or High Voltage DC bus voltages (HVDC) into a main output of 12 VDC for powering systems using distributed power architectures. The power supply is hot-swappable and supports N+1 redundant architecture. The high-power density helps to improve the overall system efficiency and enhance system reliability. The full digital control facilitates remote set-up, monitoring and control. TEC2600-12-074xA offers multiple protections including overvoltage, overtemperature, overcurrent, overpower & short circuit protection. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Output Power up to 2600W
  • Output Voltage 12 VDC
  • +12 VSB (2.1A) Standby Output
  • Input Voltage Range 90 - 264 VAC / 180 - 300 VDC
  • Dimensions: 185 x 73.5 x 40 mm (7.28 x 2.89 x 1.57 in)
  • Meets 62368-1

Features

  • 80 Plus Titanium Efficiency
  • Intel Standard CRPS Form Factor
  • High Power Density
  • Black Box Recorder, Bootloader
  • Supports N+1 Redundancy, Cold Redundancy, Internal Oring
  • Clockwise and Counter-Clockwise Fan Rotation
  • Supports Power Management Bus Communication Protocol
