PFE3000 (AC-DC/HVDC)
PFE3000 (AC-DC/HVDC)


PFE3000 (AC-DC/HVDC)

Share

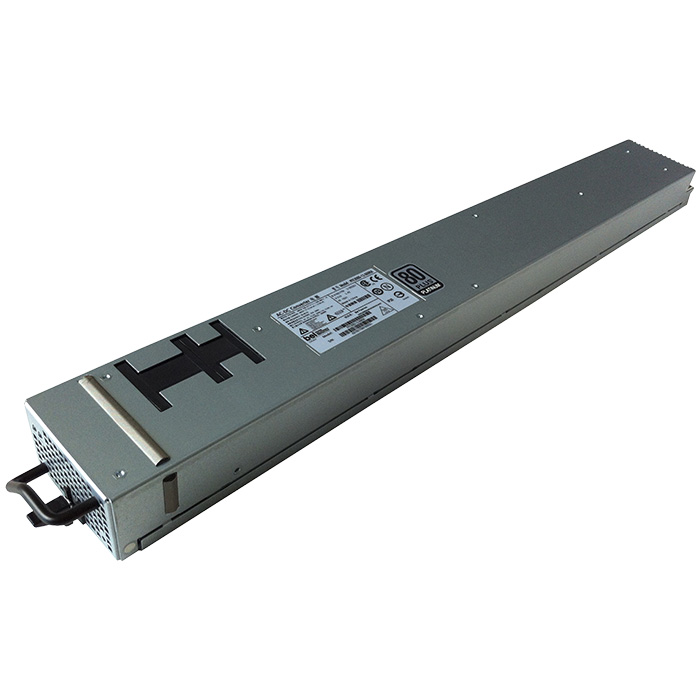

The PFE3000 Series is a 3000 Watt AC/DC power-factor-corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a single main output of either 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches or 360 VDC for powering high voltage DC Equipment.

Specifications

  • Wide input voltage range: 90-305 VAC
  • DC input voltage range: 180-400 VDC
  • High density design: 30.5 W/in3
  • Small form factor
  • Safety-approved to IEC/EN 60950-1 and UL/CSA 60950-1 2nd ed.

Features

  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader

Email Form

SPECIFICATIONS

The PFE3000 Series is a 3000 Watt AC/DC power-factor-corrected (PFC) and DC/DC power supply that converts standard AC mains power or high voltage DC bus voltages into a single main output of either 12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches or 360 VDC for powering high voltage DC Equipment.

Specifications

  • Wide input voltage range: 90-305 VAC
  • DC input voltage range: 180-400 VDC
  • High density design: 30.5 W/in3
  • Small form factor
  • Safety-approved to IEC/EN 60950-1 and UL/CSA 60950-1 2nd ed.

Features

  • AC input with power factor correction
  • Hot-plug capable
  • Parallel operation with active current sharing thru analog bus
  • Full digital controls for improved performance
  • I2C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader

DOCUMENTS

SUPPORT

Email Form

REQUEST QUOTE

PFE3000 (AC-DC/HVDC)

Part Number Distributor Stock Drawing/Datasheet 3D Model Sample Request Power (W)Output Voltage (VDC)Standby Output (V)Output Current (A)Voltage Input (VAC)Operating Temperature (°C)Dimensions LxWxH (mm)AirflowInput Connector
PFE3000-12-069RAS366 cancel
3D Icon 3000121224490-300555 x 69 x 42ReverseIEC 60320-C14 type
PFE3000-12-069RA check_circle
3D Icon Sample Request Icon 3000121224490-300555 x 69 x 42ReverseIEC 60320-C14 type
