0HAAL Series
0HAAL Series

DATASHEET


0HAAL Series

Share

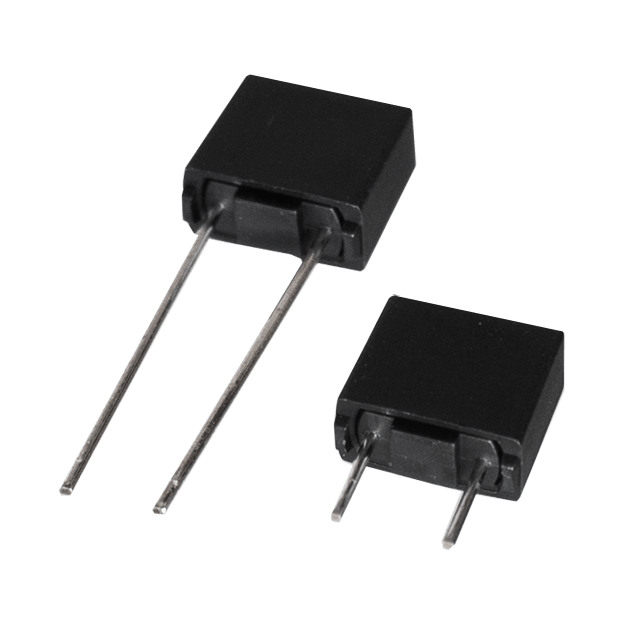

0HAAL Series is a sub-miniature, Time-lag Type, 250 VAC rated fuses designed, approved and complied with IEC 60127-3, standard sheet 4. Pre-dominant radial lead package with U.S (UL), Europe (VDE) and China (CCC) safety agency certifications, allows use of a single fuse rating in products with true World-Wide acceptance. Provides board level primary circuit protection in a wide variety of battery chargers, power supplies, consumer electronics, etc.

Specifications

  • Wave Solder Process - 260ºC, 10 Sec., Max.
  • Multiple Safety Agency Certifications
  • Operating Temperature: -55ºC to +125ºC
  • Mil-Std 202G Environmental Compliant

Features

  • Compact rectangular body with 5mm Pin Spacing
  • 94V-0 Thermoplastic Housing
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • Bulk and Ammo Pack Available

Datasheets and Drawings

Data Sheet 0HAAL Datasheet

Safety Certificates

Safety Certificate VDE Certificate - 0HAAL (1A-6.3A)

Environmental Compliance

Environmental Compliance Bel Fuse RoHS Declaration

Email Form

SPECIFICATIONS

0HAAL Series is a sub-miniature, Time-lag Type, 250 VAC rated fuses designed, approved and complied with IEC 60127-3, standard sheet 4. Pre-dominant radial lead package with U.S (UL), Europe (VDE) and China (CCC) safety agency certifications, allows use of a single fuse rating in products with true World-Wide acceptance. Provides board level primary circuit protection in a wide variety of battery chargers, power supplies, consumer electronics, etc.

Specifications

  • Wave Solder Process - 260ºC, 10 Sec., Max.
  • Multiple Safety Agency Certifications
  • Operating Temperature: -55ºC to +125ºC
  • Mil-Std 202G Environmental Compliant

Features

  • Compact rectangular body with 5mm Pin Spacing
  • 94V-0 Thermoplastic Housing
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • Bulk and Ammo Pack Available
