BCL25-700-8 - Battery Charger

Share

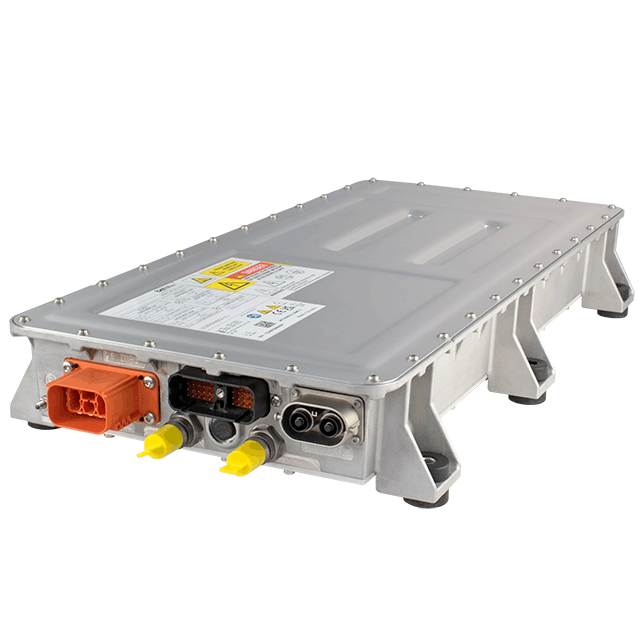

The BCL25-700-8 is a 22 kW liquid cooled on-board battery charger that converts 3-phase AC voltage to DC voltage in hybrid or full electric vehicles.

Specifications

  • Input power up to 22/25 kW @ 400/480 VAC
  • Typical efficiency 95%
  • AC input range:
      •Three phases: 330 - 528 VAC (L-L)
      •Single phase: 190 – 264 VAC (L-N)
  • DC output 240 - 800 VDC
  • IP67, IP6K9K protection
  • Operating temperature -40°C to 60°C at full load

Features

  • Bi-directional operation:
      • AC-DC charge mode
      • DC-AC export mode
  • Parallelable up to 4 units in charge mode
  • SAE J1939 compliant CAN bus communication interface
  • SAE J1772 & EN 61851 compliant
  • SAE J1455 compliant environmental standards
  • IEC 61851-21-1 compliant immunity requirements
  • J1939 compliant CAN Control and Monitoring
  • Active HVDC interlock monitoring
  • Over-temperature, output over-voltage and over-current protections
